Guide to Fine Wire Handling & Textile Automation

Fine Wire Automation

Engineering with Fine Wires & Textiles

A remarkable variety of products rely on mechanical and control engineering to develop finely-tuned automated systems that can perform precise fine wire/textile manufacturing processes.

From life-saving surgical products like pacemakers and defibrillators, to micro-electronic devices and advanced gaming tech, and smart wearables that integrate different wires, textiles, and electronics, each fine wire/textile product has unique technical requirements, material composition, and automation challenges.

The material required for each fine wire/textile application adds complexity to the design considerations. Products that utilize fine wire or fine textile are defined as such by the diameter of the material:

> “Fine wire” applications utilize ultra-thin, coiled wire (bare or insulated) in the diameter range between 0.005” (0.127mm) to 0.002” (0.05mm), which can make the material difficult to manipulate and easy to break.

> “Fine textile” includes small diameter ranges as well, but also adds multiple factors of complexity to properly handle the material characteristics (natural or synthetic composition, rigid or elastic, spool requirements, debris generated, etc.).

Automating to Improve Performance & Quality

The manual handling of ultra-thin wires and textiles is not only cumbersome and inefficient, but manufacturing can also be highly complex and prone to human and/or machine errors.

Automation creates a balanced and efficient system of coordinated vision, guidance, and tension control to suit the specific type of wire or textile, achieving repeatable quality and higher speed production.

Even with existing automated systems, upgrading components and refining the precision handling of the material generates improved performance and production efficiency.

Successful automation of fine wires and textiles depends on many interrelated factors, such as:

> Selecting an appropriate vision system that works best with the composition and profile of the wire

> Reducing vibration to improve the effectiveness of the vision system

> Engineering the system with appropriate guidance hardware to reduce debris and related performance issues

> Selecting the right tensioners to improve the path and balance of tension to improve the efficiency of the wire routed throughout the system

> Designing a system that enables quick material replenishment and reconfiguration to ensure maximum operational uptime

Based on our extensive experience with fine wire handling, we’d like to share some of these technical considerations at a high level. Our engineers use these insights to successfully design (or improve) your automated fine wire and fine textile handling system.

Vision System Integration

High-quality vision systems and their integration are critical components of custom fine wire and textile automation systems. Each application has a specific set of requirements that impacts the performance of the system, from the manufacturing environment down to the composition of the wire or textile. To select an effective vision system, evaluating and designing for your project’s unique specifications is important.

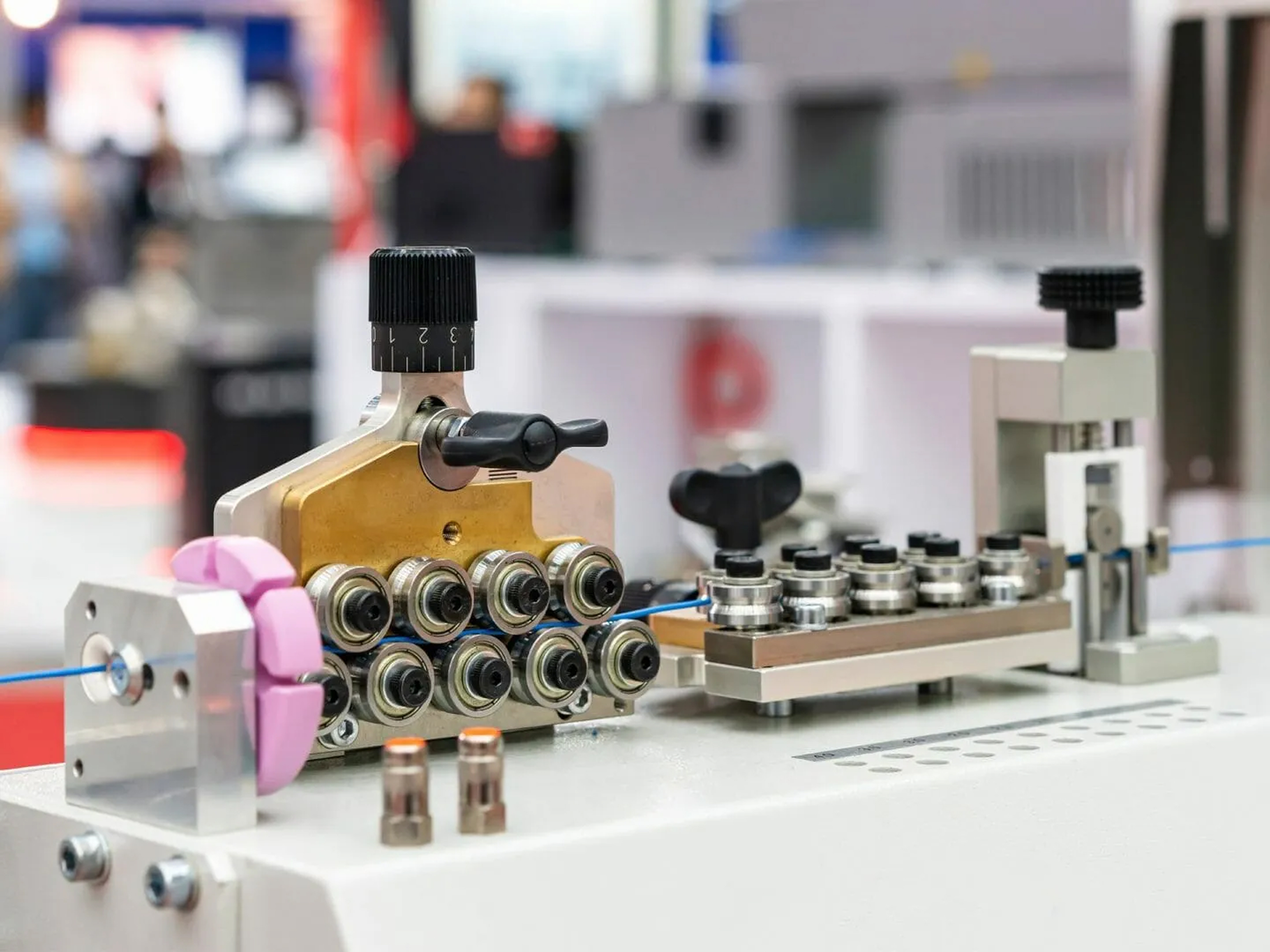

Metal roller guide feeder unit wire manufacturing and automation

Designing for Wire Composition

The type of material composition affects multiple areas of a wire handling system.

> Some fine wire/textile abrades more easily and requires the use of rolling contact guides, like pulleys, to prevent breakages.

> The cross-sectional consistency of the wire also plays an important role. If a wire/textile’s thickness is inconsistent along its entire length, its break strength also varies. To account for this, the system must be designed so that the highest tension in the system is still lower than the absolute minimum break strength of the wire.

> The number of strands in the wire also affects the visual system. A single-core wire has a well-defined edge that can be accurately measured; a multi-strand wire (prior to being covered with insulation) does not have a continuous profile, making it more difficult to measure.

Reducing Vibration to Improve Vision Efficiency

Three potential sources of vibration can affect a vision system’s efficiency: wire, wire mount, and camera mount.

> The camera mount can be isolated from potential vibration.

> However, the wire and its guide can interact in a manner that causes vibration. This vibration will reduce the overall effectiveness of the vision system by making it more difficult to detect the thickness of the wire due to the extra motion.

In addition, the root cause of the vibration (the wire interacting with the guide) can damage it. Different guidance hardware has different effects on vibration and should be selected with the composition of the wire in mind to reduce overall vibration.

Guidance Hardware

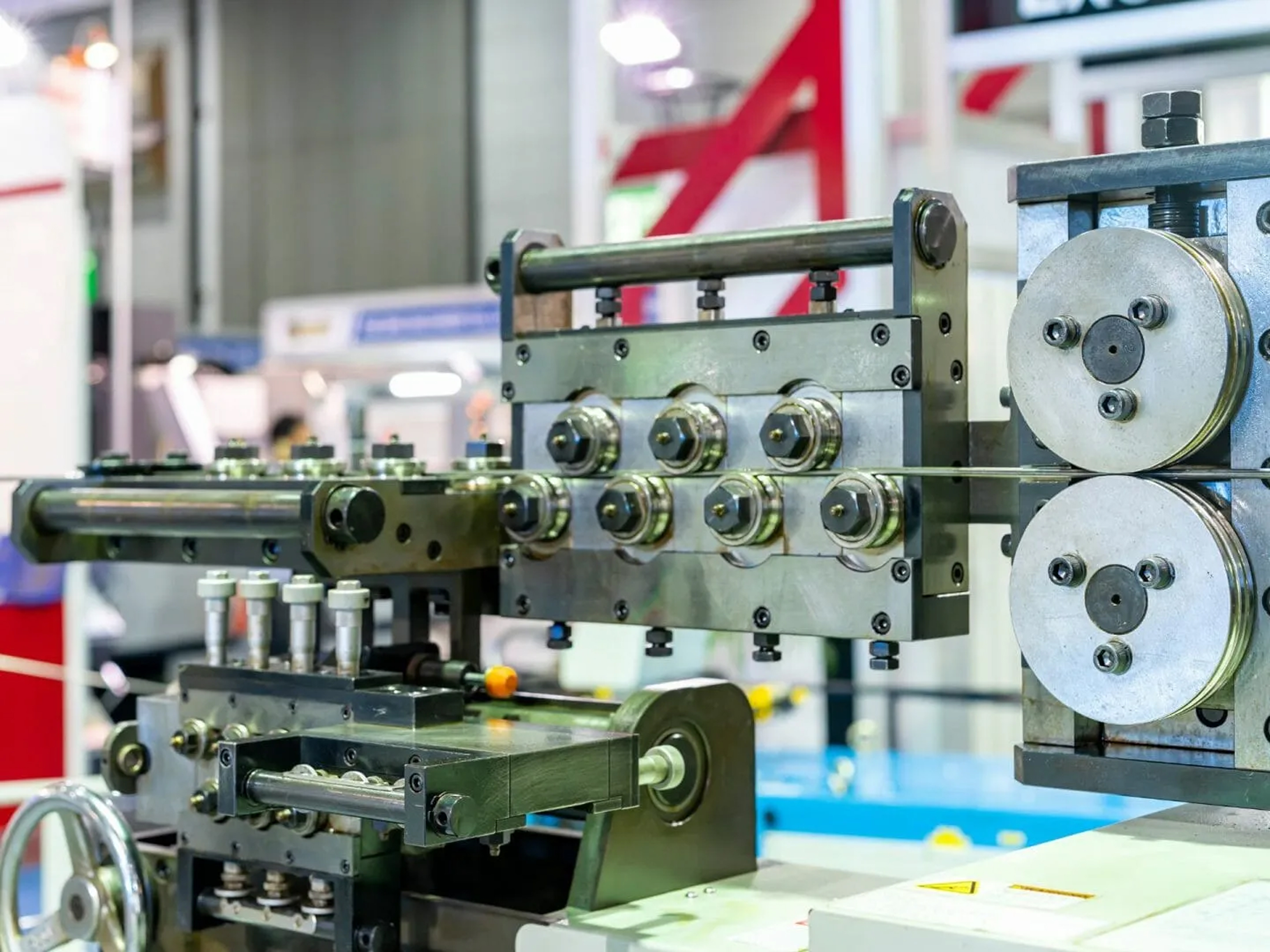

Roller or wire feeder pulley unit for guide and manufacturing automation

Controlling Direction

During the manufacturing process, the fine wire will often undergo multiple changes of direction. Some examples of guidance hardware options used to achieve this direction change are included below.

Fine Wire Automation Hardware

Reducing Debris

During continuous wire fabrication, debris can build up and cause potential issues such as wire breakages. The amount of debris generated is directly related to the type of guidance hardware used as well as the type of wire. Some textiles and wires are more resistant to abrasion and therefore will produce less debris, but in some cases, debris generation is inevitable.

Tension is also impacted by debris buildup in your system. Understanding where and how debris is generated allows you to make effective design choices.

AC is Solving the Toughest Automation Challenges in the Industry

Tension Control

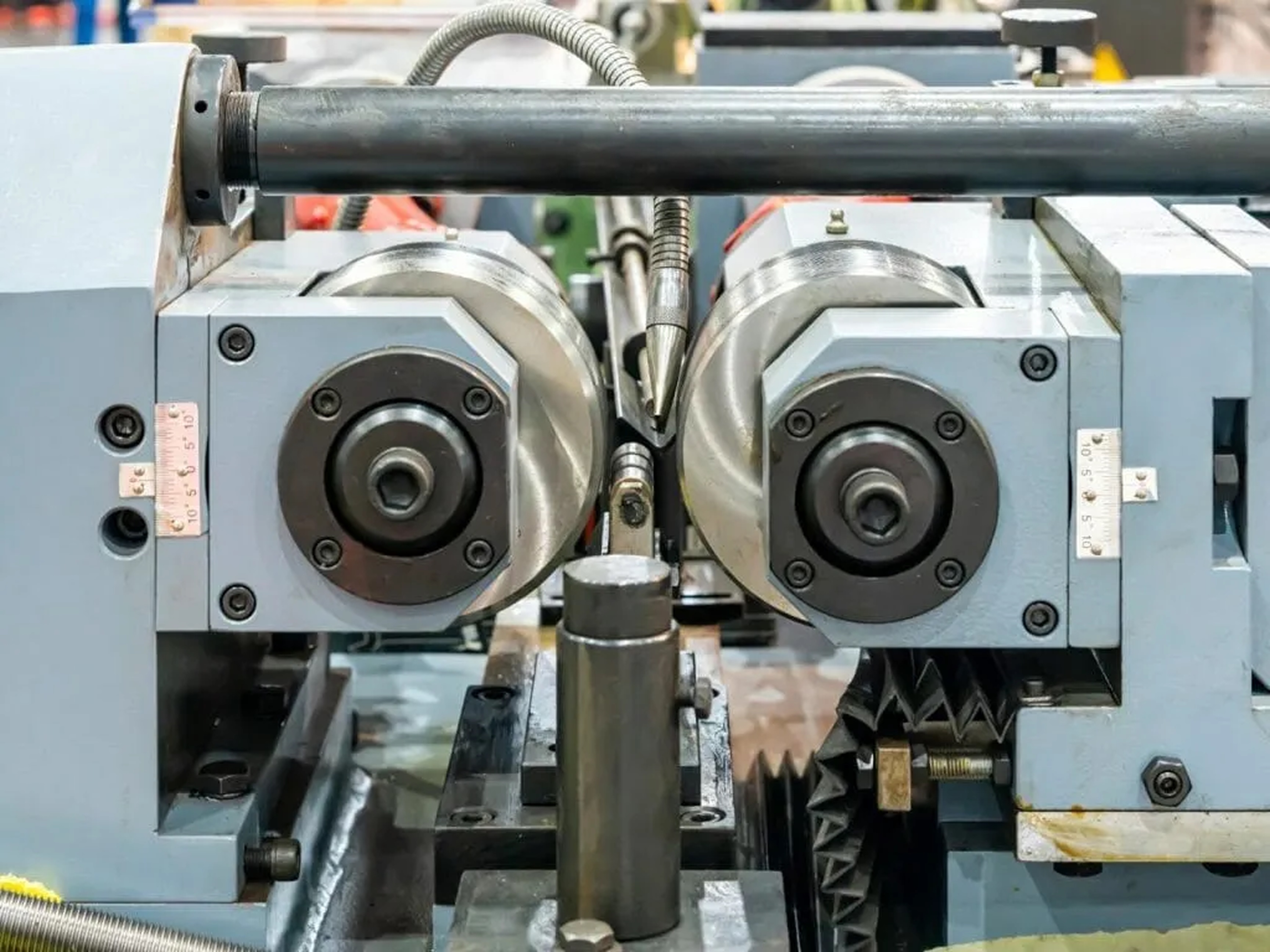

two thread rolling die for wire automation

Engineering Balance for Tension Control

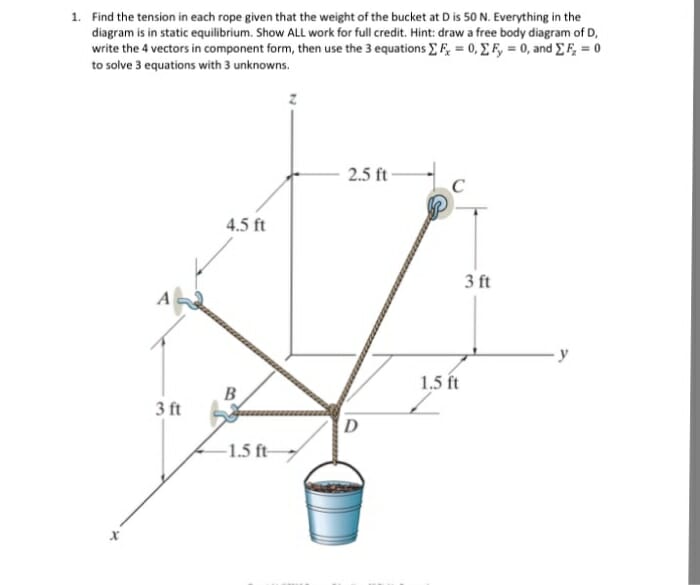

To understand the complexity of fine wire/textile tension control, let’s start with a classical engineering question. Imagine you have a bucket at the end of a rope, which is on the end of several pulleys attached to a wall. What is the tension of your line at the bucket and what is the tension of your line at the wall where it is tied off? When it comes to this kind of engineering problem, the answer is the tension is the same at both locations.

Tension Control
via Chegg

But with fine wire handling, the tension is going to be different throughout the system. Although the tension of your wire is the same from one inflection point to the other, it will always be different on either side of the inflection point: it is always additive because friction is always additive. Tension increases from its source until it hits the end of the line – this is a critical design issue to resolve.

Further complicating the design, when multiple wires and paths interact with each other, each one needs to be calculated depending on the unique specifications of the system.

Understanding how to apply engineering principles to balance the tension across critical points directly improves the integrity of the system.

Selecting Tensioners to Improve Handling

Selecting the right tensioner is critical to the proper handling of fine wires/textiles, otherwise incorrect tensioning can result in wire breakages.

Additional contributing factors, like variation in the circularity of the source spool or upstream slowdowns/stoppages, further increases the need to maintain correct tension during production.

Several mechanisms help to design tension control into the system, some of which are described below:

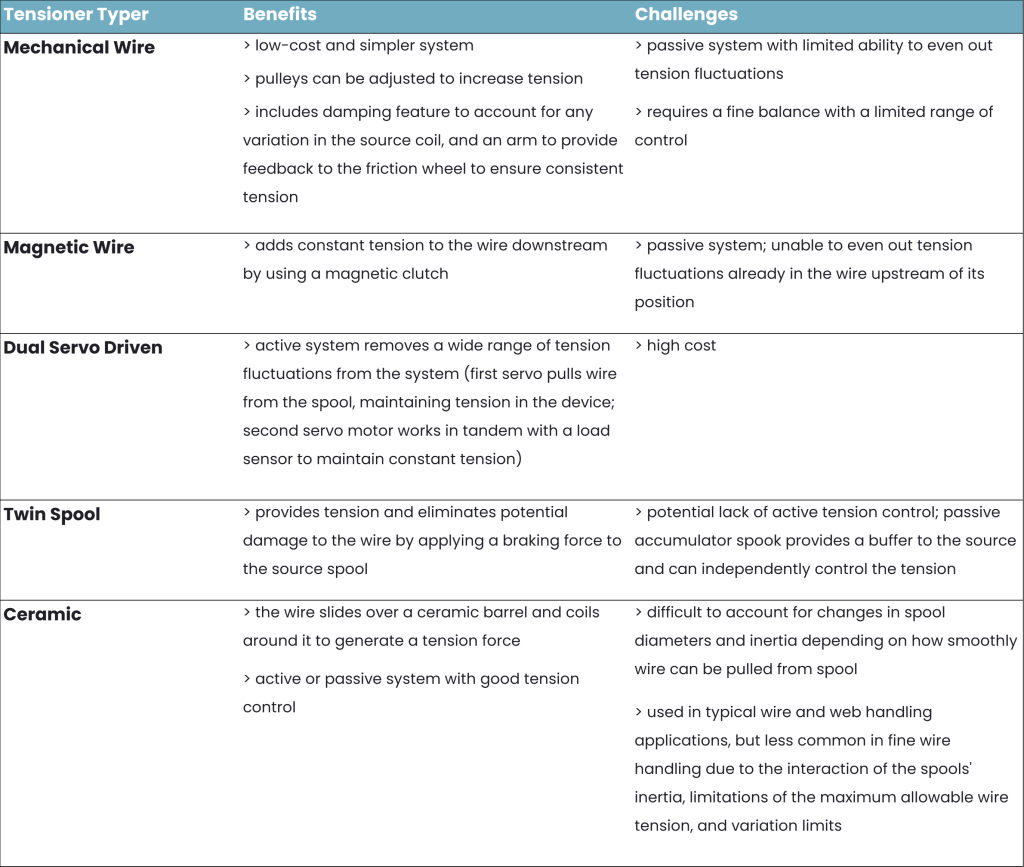

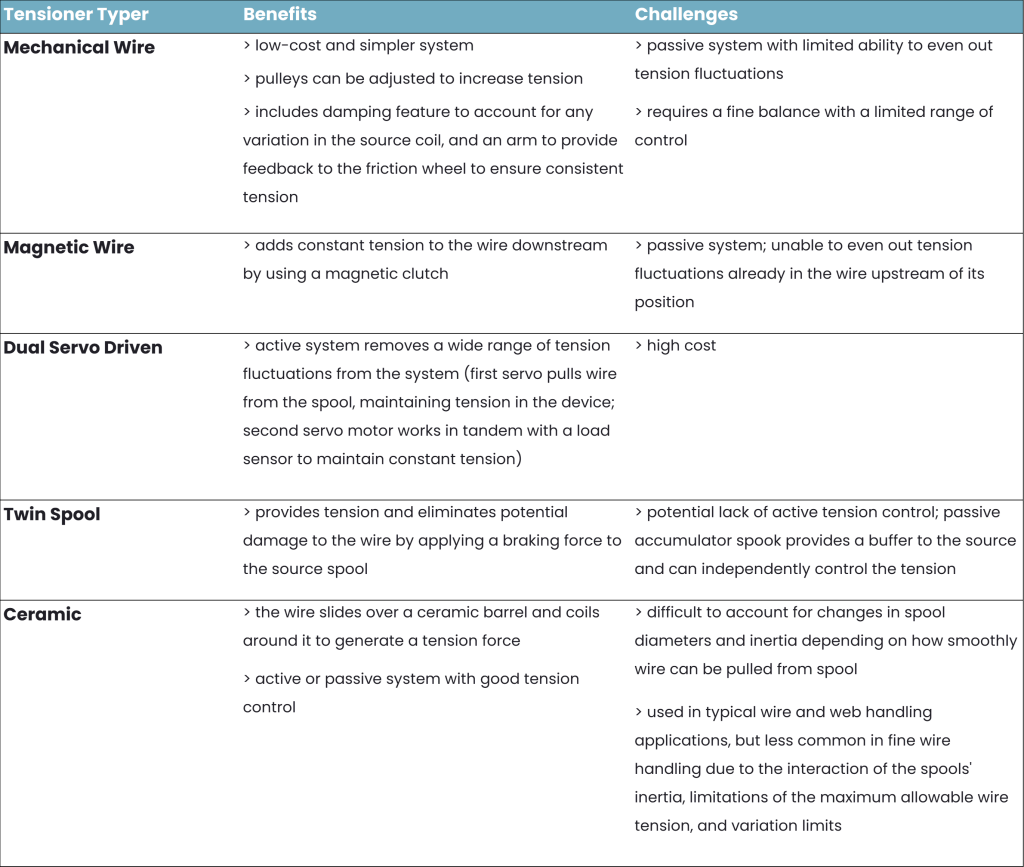

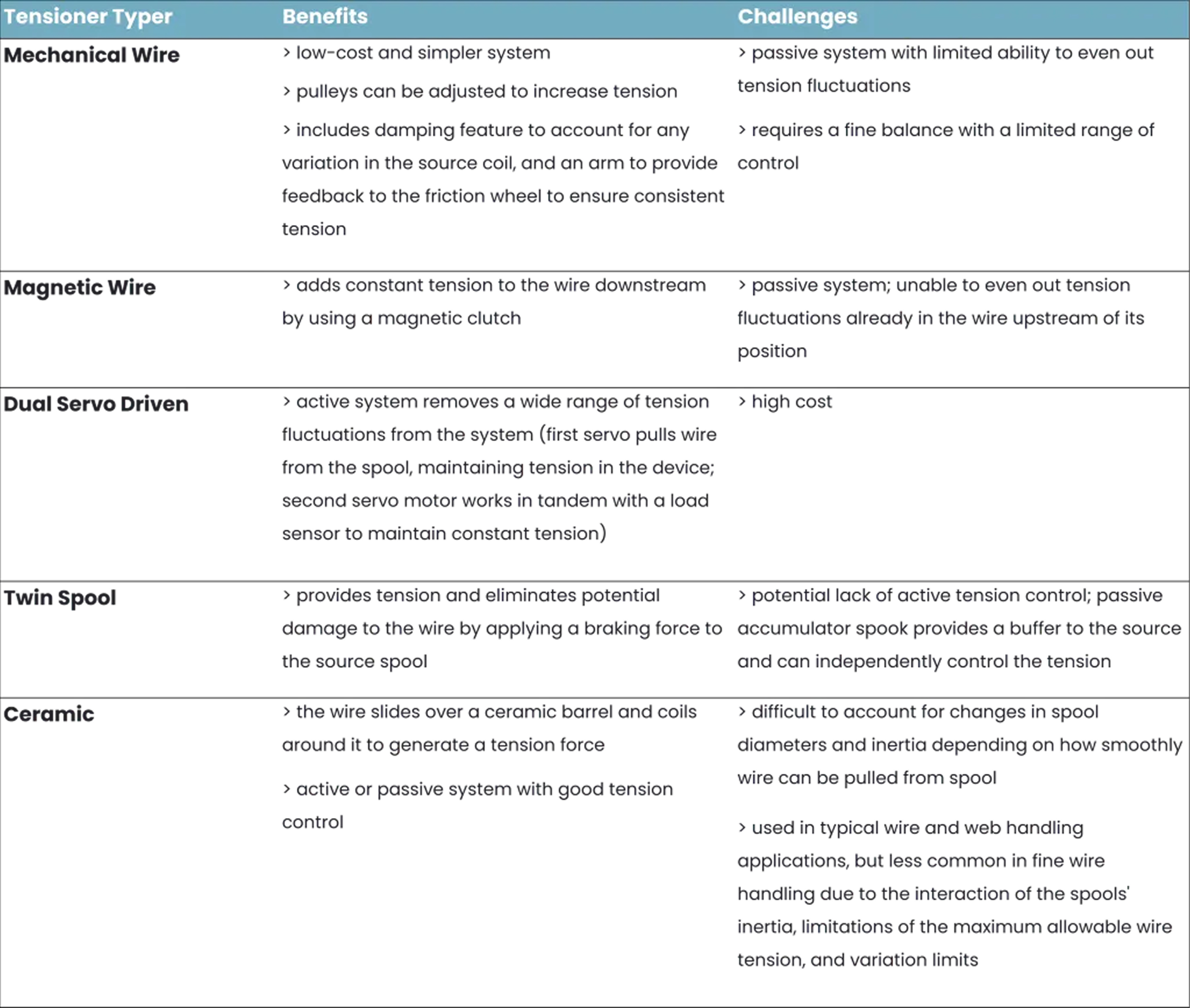

Tension Control Types

Improving Wire Path Efficiency to Reduce Tension

The tension of the wire through the system is dependent on its path as well as the selected tensioners. The more direction changes, the more the tension will be increased by the end of the path.

To reduce this friction, it is important to limit the number of bends in the path and the angle of inflection of the wire at each bend. The radius should still be kept as large as possible to limit the forced induced in the wire. Too small of radius can cause the material to work harden or/or fracture, depending on the material.

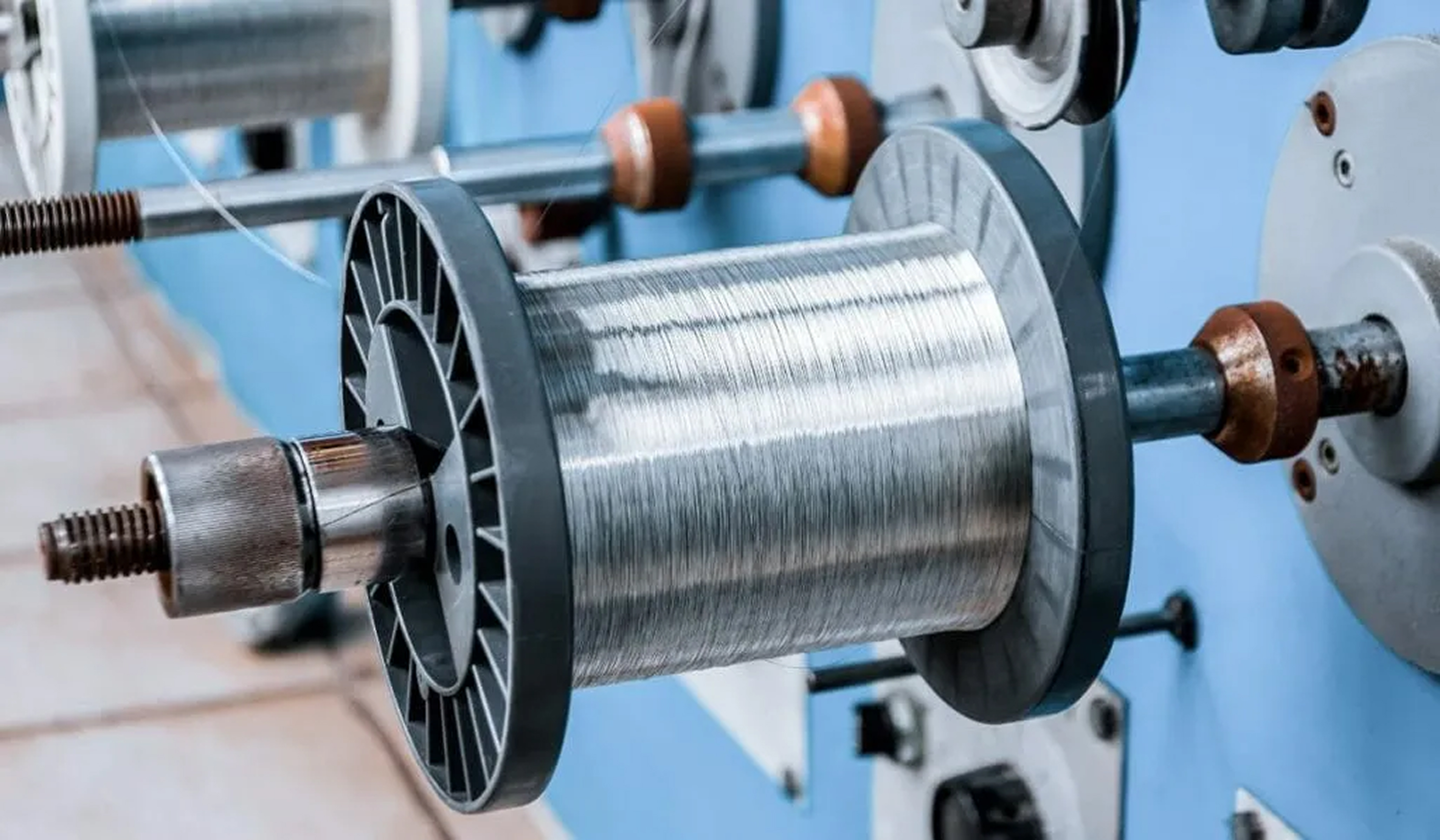

Considering Direction Off the Source

In addition to the wire path of the system, consider the direction off the source of material, which can lead you to select one type of spool over another.

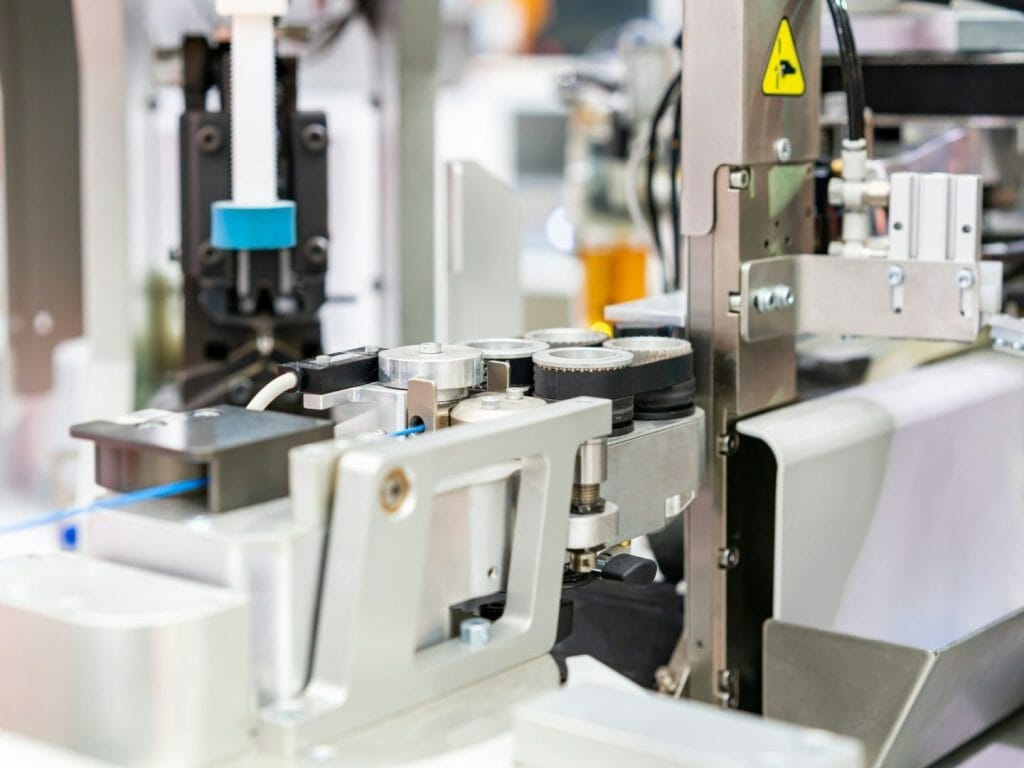

precision fine wire handling automation

Radial

> Enables tension and braking control to prevent runaway unspooling; requires low friction bearings

> Pulling wire radially from the spool requires the spool to rotate; requires consideration of spool inertial effects

Axial

> Doesn’t require the spool to move, but may require a tapered shape and specific spooling pattern depending on the composition of wire:

> Textile fiber spools are tapered to reduce the drag and cinching potential.

> Wire spools typically don’t need tapering as it negates the inertia of the spool and generally results in less tension variation.

Replenishment & Reconfiguration

Even when a fine wire/textile system is designed for optimal performance, it’s critical to consider the full operational needs of the process. What happens when material runs out or the unexpected when a wire breaks during production? Automation of fine wire/textile handling should be flexible enough to handle the termination, replenishment, and rethreading of fine wire and textiles for maximum uptime.

Design Replenishment Access Points

When a wire runs out during production, it needs to be replenished. An operator can replace a spool or tie a knot where the wire ran out (or broke) when applicable to the product. But access points should be designed in the wire path to enable the operator to maneuver. Very fine wires may also result in a time-consuming rethreading process without careful planning. Other considerations can include:

> Are specialized knots required to eliminate the potential of the knot catching on an eyelet?

> Are specialized tools helpful to ensure quick replenishment?

Automate Reconfiguration for Efficiency

If a product changeout requires significant differences in wire diameter, strength, or stiffness, the machine will need to be reconfigured. It is optimal for the system to be reconfigurable without having to change too much hardware. In some cases, automated reconfiguration is recommended to make the process as painless and efficient as possible.

Fine Wire Automation

The AC Approach

These factors provide an introductory guide as you consider the needs of your fine wire/textile process. With AC engineering support, you can design a robust automation solution tailored to your unique material, application, and installation requirements – and stay within the guardrails of a specified manufacturing and budget plan.

> Do you need engineering expertise to convert from a manual process to automated solution?

> Are you developing improvements to your existing automated system and seek a design review to ensure a higher level of performance and quality?

Let AC help you spin up your fine wire project – reach out with your application’s requirements today!
